Main Industry and Application

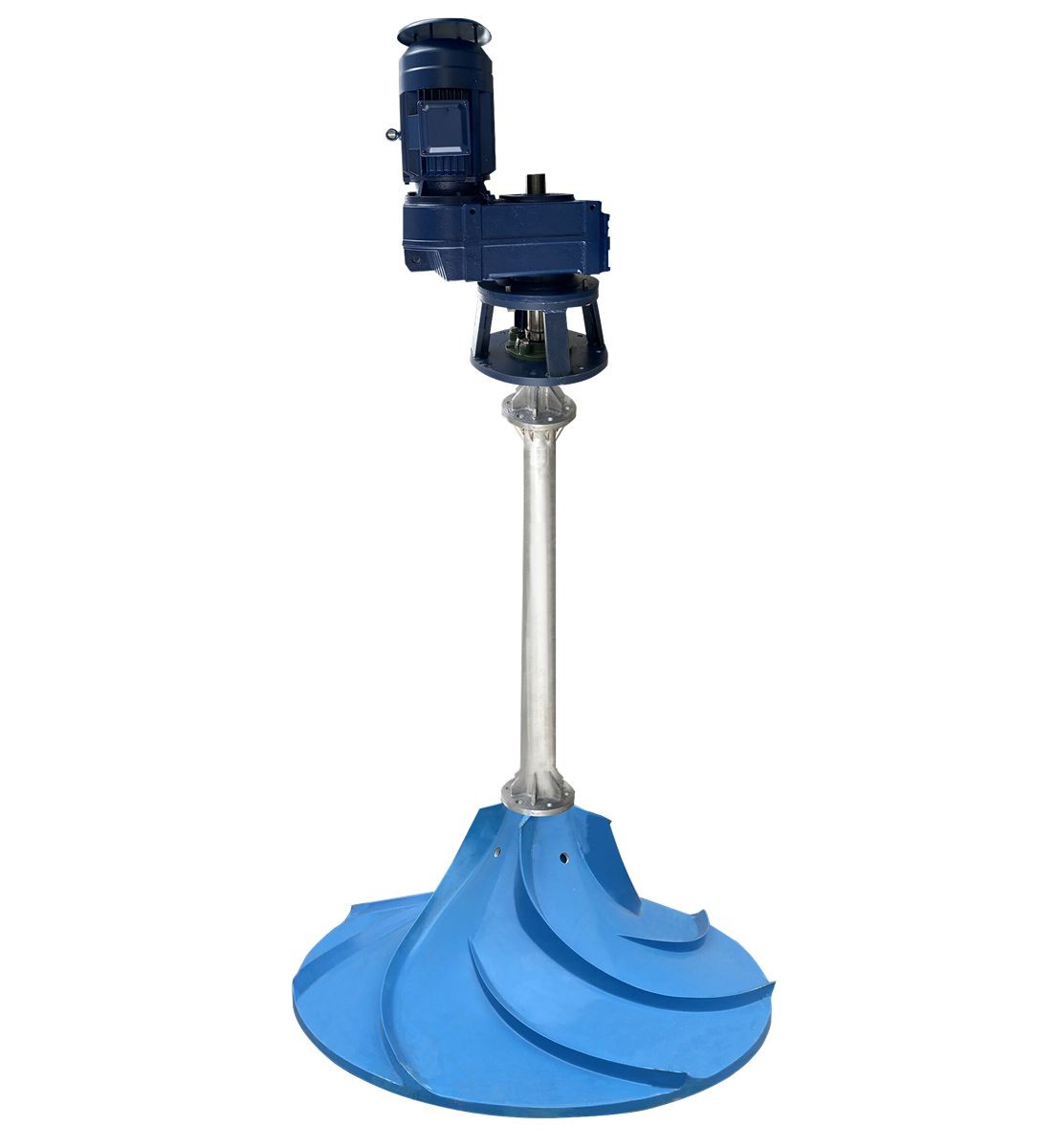

Hyperboloid mixers are widely used in environmental protection, chemical, energy, light industry
and other industries where solid, liquid and gas mixing is required. It is especially suitable for
coagulation tanks, regulating tanks, anaerobic tanks, nitrification and denitrification tanks in
sewage treatment processes. The unique installation method of the motor above the liquid level
of the QDJ hyperboloid mixer is particularly suitable for working in high-temperature,
high-concentration, and corrosive liquid environments
Working Condition
The density of the media shall not exceed 1150 kg/m³.
The installation depth should not exceed 10m.
Main Specifications and Dimensions
Model | Impeller | Speed(r/min) | Power(kW) | Service | Weight(kg) | ||
Standard | Range | Standard | Range | ||||
GDJ/QDJ | 500 | 76 | 40~110 | 1.1 | 0.75~1.5 | 1~3 | 300/320 |
1000 | 55 | 30~80 | 1.5 | 1.1~2.2 | 2~5 | 480/710 | |
1500 | 38 | 30~60 | 2.2 | 1.5~3 | 3~6 | 510/850 | |
2000 | 33 | 20~42 | 3 | 2.2~3 | 6~14 | 560/1050 | |
2500 | 27 | 20~42 | 5.5 | 3~5.5 | 10~18 | 640/1150 | |
2800 | 24 | 20~30 | 7.5 | 4~7.5 | 12~22 | 860/1180 | |
