Application
In the water treatment, frame mixers are mainly used in water plants and sewage treatment plants to dissolve and mix chemicals. It is especially suitable for agitating flocculation agents. It agitates at low speed through the paddle frame to ensure a wide mixing range and prevent the solution from solidifying.
The Structure

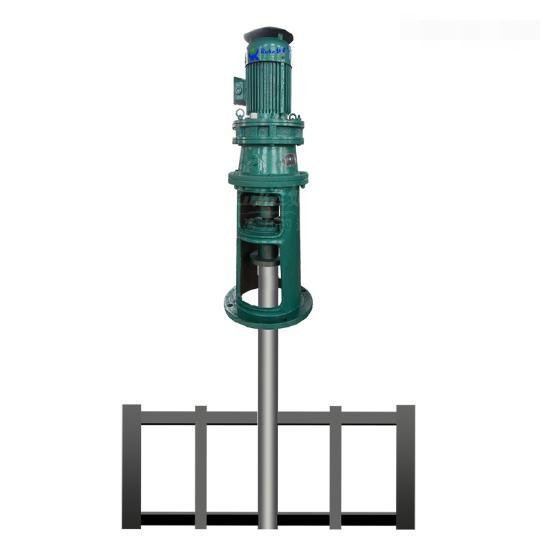

The JBK paddle mixer is composed by the power station, the base, drive shaft and the frame and so on.

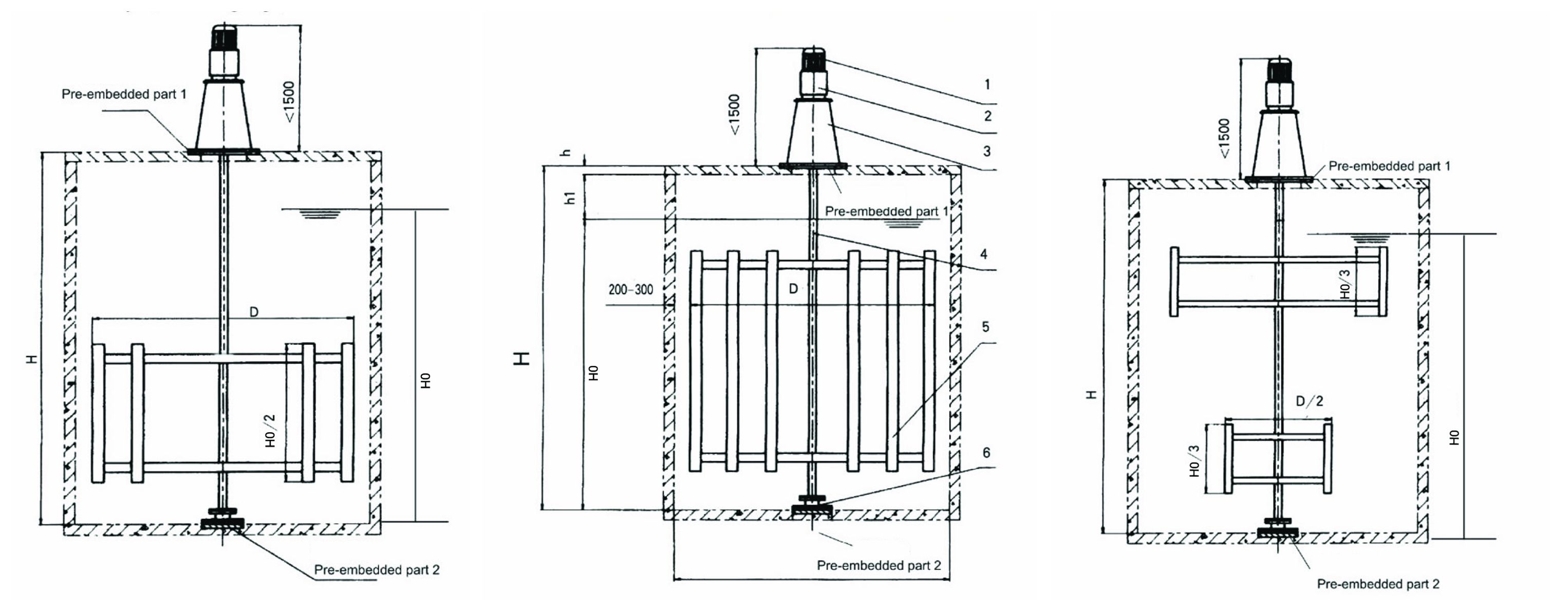

Main Specifications and Dimensions
Tank dimension (m) | Agitator dimension (mm) | Motor power (kW) | Working speed (r/min) | ||||||||
A X B | H | D | H0 | H1 | I | II | III | I | II | III | |
JBK-1700 | 2.2X2.2 | 3.4 | 1700 | 2600 | 400 | 0.75 | 0.37 | 0.37 | 8 | 5.2 | 3.9 |
JBK-2875 | 3.25X3.25 | 4 | 2875 | 3500 | 350 | 5.2 | 3.9 | 3.2 | |||
JBK-3000 | 3.5X3.5 | 3.55 | 3000 | 2200 | 550 | 0.37 | 0.25 | 0.18 | 3.9 | 2.5 | 1.8 |
JBK-3850 | 4.3X4.3 | 4 | 3850 | 1200 | 1.1 | 0.75 | 0.55 | 1.5 | |||
4.7X4.7 | 3.4 | 1400 | 3.2 | 2.5 | |||||||
