Main Industry and Application
The Stainless Steel version is specifically engineered for environments where FRP might reach its physical limits.
High-Temperature Fluids: Ideal for industrial processes where the liquid temperature exceeds the safety range of composite materials.
Complex Chemical Media: Used in tanks containing organic solvents or specific acids/alkalis that require the specialized resistance of SS316L.
Food & Pharmaceutical Grade: Suitable for sanitary applications requiring "clean-in-place" (CIP) capabilities and non-porous surfaces.
Abrasive Slurries: Superior resistance to mechanical wear and tear from gritty particles compared to standard coatings.
Petrochemical & Oil/Gas: Meeting the stringent fire safety and structural standards of heavy industrial zones.
Working Condition
The density of the media shall not exceed 1150 kg/m³.
The installation depth should not exceed 10m.
Main Specifications and Dimensions
Model | Impeller | Speed(r/min) | Power(kW) | Service | Weight(kg) | ||
Standard | Range | Standard | Range | ||||
GDJ/QDJ | 500 | 76 | 40~110 | 1.1 | 0.75~1.5 | 1~3 | 300/320 |
1000 | 55 | 30~80 | 1.5 | 1.1~2.2 | 2~5 | 480/710 | |
1500 | 38 | 30~60 | 2.2 | 1.5~3 | 3~6 | 510/850 | |
2000 | 33 | 20~42 | 3 | 2.2~3 | 6~14 | 560/1050 | |
2500 | 27 | 20~42 | 5.5 | 3~5.5 | 10~18 | 640/1150 | |
2800 | 24 | 20~30 | 7.5 | 4~7.5 | 12~22 | 860/1180 | |
Key Features

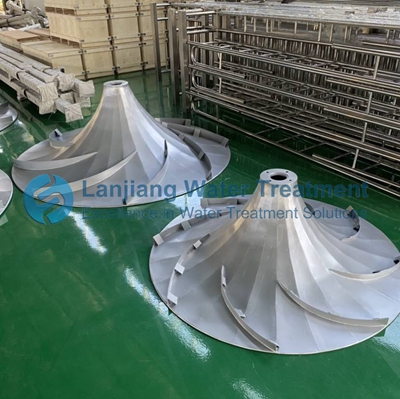

Heavy-Duty Durability: CNC-welded and precision-balanced SS304 or SS316L impellers ensure long-term structural integrity under high torque.
Optimized Hydraulic Design: The "Double-Curved" geometry minimizes fluid resistance while maximizing the circulation volume, even in high-viscosity liquids.
Superior Heat Resistance: Unlike plastic alternatives, the stainless steel build maintains its shape and performance in boiling or high-heat environments.
Total Customization:
Surface Finish: Choose from industrial pickling, passivation, or mirror polishing for sanitary needs.

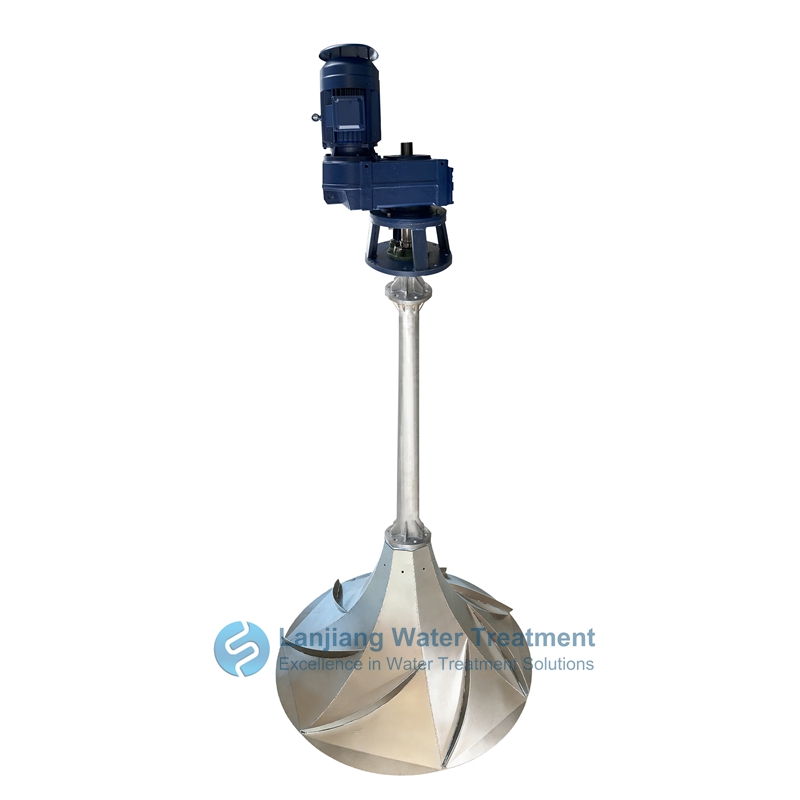

Drive System: Fully compatible with premium gearbox brands like SEW, Nord, or Guomao.
Shaft Design: Reinforced stainless steel shafts tailored to any tank depth.
