Aeration Mixer Parallel Installation Layout: How to Arrange Multiple Units Without Them Fighting Each Other

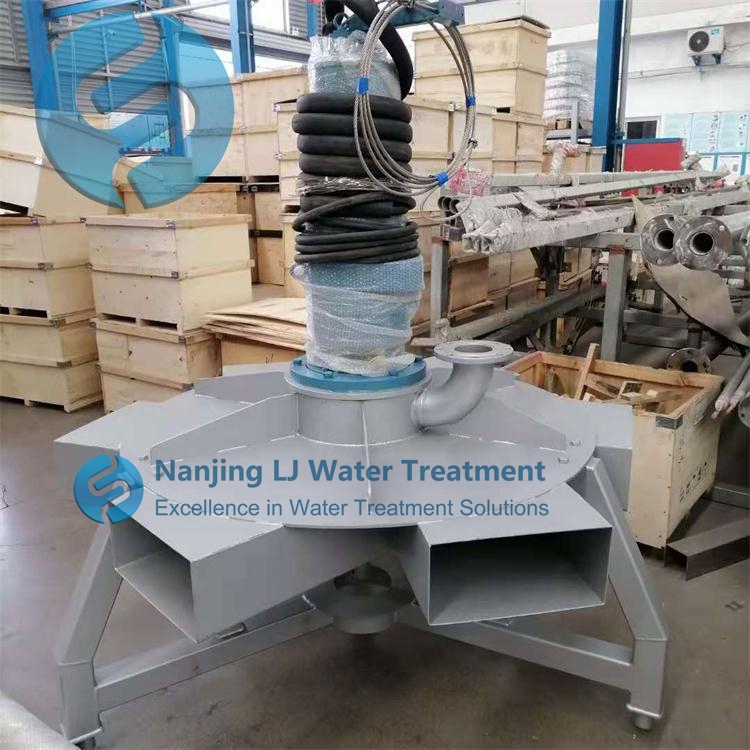

Running one aeration mixer is straightforward. Running four or six in parallel turns the whole project into a different beast. The mixers interact with each other — their flow fields overlap, their thrust vectors collide, and if you space them wrong, they cancel each other out instead of adding up. A parallel installation that looks good on paper can perform worse than a single unit if the layout ignores how the water actually moves.

The arrangement is not about fitting as many mixers as possible into the basin. It is about placing each unit where its flow covers dead zones without interfering with the neighbor. Get the spacing right and the whole basin mixes efficiently. Get it wrong and you waste electricity on units that are doing nothing useful.

Why Parallel Layout Fails More Often Than It Succeeds

Most parallel installations fail because someone copied a floor plan from a different project without adjusting for the actual basin geometry. A rectangular tank with a central divider behaves completely differently from a circular lagoon with a sloped bottom. The same mixer spacing that works in one fails miserably in the other.

The core problem is flow interference. When two mixers are too close, their flow fields collide head-on. The water between them gets pushed in opposite directions and ends up going nowhere — a stagnation zone right between the two units. The mixers draw more current trying to push against each other, the bearings wear faster, and the oxygen transfer drops because the water is not actually moving through the basin.

The Sweet Spot Between Coverage and Interference

Every mixer creates a cone of influence — a roughly elliptical zone where the flow velocity is high enough to keep solids suspended and transfer oxygen. Outside that cone, the water is essentially dead. The goal of parallel layout is to tile these cones across the basin floor so there are no gaps and no overlaps that cause cancellation.

For most axial-flow impellers, the cone of influence extends roughly 1.5 to 2 times the impeller diameter in every direction. A mixer with a 600-millimeter impeller covers a circle about 1.2 meters wide. Place the next mixer 2.4 meters away center-to-center and the cones just touch — no gap, no overlap.

Closer than that and the cones overlap. The overlap zone does not double the mixing — it cancels it. The thrust from one mixer pushes water into the thrust zone of the other, creating a wall of stagnant water between them. Wider than that and you leave dead zones between the units. Solids settle in those gaps, oxygen drops, and the whole point of running multiple mixers is lost.

Grid Pattern vs. Staggered Pattern: Which One Actually Works

There are two main ways to arrange mixers in parallel — a grid pattern and a staggered pattern. Both have their place, but one is almost always better than the other.

Grid Pattern Looks Clean But Creates Alignment Problems

A grid pattern places each mixer at the intersection of evenly spaced rows and columns. It is easy to design, easy to install, and easy to maintain. But it has a hidden flaw — the flow from every mixer pushes directly toward the mixer in front of it.

In a grid layout, the thrust vectors from adjacent mixers are parallel. They do not cancel each other, but they also do not help each other. Each mixer works in isolation within its own cell. The water at the cell boundaries barely moves. If the basin has any asymmetry — an inlet on one side, a slope on the floor, a wall on one end — the grid pattern cannot adapt. The cells on one side get too much flow while the cells on the other side get too little.

Grid patterns work in very uniform basins with flat floors and no inlet or outlet bias. In real-world installations, they leave dead zones at the edges and under the inlet pipe.

Staggered Pattern Covers More Ground With Fewer Units

A staggered pattern — also called a hexagonal or offset layout — shifts every other row by half the spacing distance. This breaks up the direct thrust alignment between neighbors. Instead of pushing into each other, the mixers push diagonally across the basin, creating a cross-flow pattern that sweeps solids toward the outlet and covers the floor more evenly.

The staggered pattern covers roughly 15 percent more floor area per unit than a grid pattern with the same spacing. That means you need fewer mixers to achieve the same coverage. Fewer mixers mean lower capital cost, lower electrical load, and less maintenance.

The downside is installation complexity. The mounting points are not in straight lines, so the anchor bolt patterns are different for each row. The electrical cabling is longer because the units are not aligned. But the performance gain is worth the extra planning time.

Spacing Rules That Actually Match Real-World Conditions

Spacing is not a fixed number. It depends on the impeller size, the water depth, the basin shape, and what you are trying to achieve. These rules come from field experience, not from textbook theory.

Center-to-Center Distance Based on Impeller Diameter

The most reliable spacing rule is based on impeller diameter, not on basin size. For axial-flow mixers, space units at 2.5 to 3 times the impeller diameter center-to-center in a staggered pattern. For radial-flow mixers, use 2 to 2.5 times the impeller diameter because radial impellers throw water farther and their cones of influence are wider.

A 500-millimeter axial impeller should be spaced 1.25 to 1.5 meters apart in a staggered layout. A 500-millimeter radial impeller can be spaced 1.0 to 1.25 meters apart. Tighter spacing works in shallow basins where the flow does not have room to develop. Wider spacing is needed in deep basins where the flow column is tall and the cone extends farther.

Distance From Walls and Inlet Pipes

Every mixer needs clearance from the walls — not just to avoid hitting them, but because the wall changes the flow pattern. A mixer within 0.5 meters of a wall pushes water into the wall and the flow reflects back, creating a chaotic eddy that reduces thrust efficiency by up to 20 percent.

Keep every mixer at least 1 meter from any wall. If the basin is narrow and you cannot avoid closer spacing, tilt the impeller away from the wall by 10 to 15 deg
