Foundation Pit Pre-Burial for Aeration Mixers: What Actually Works on Site

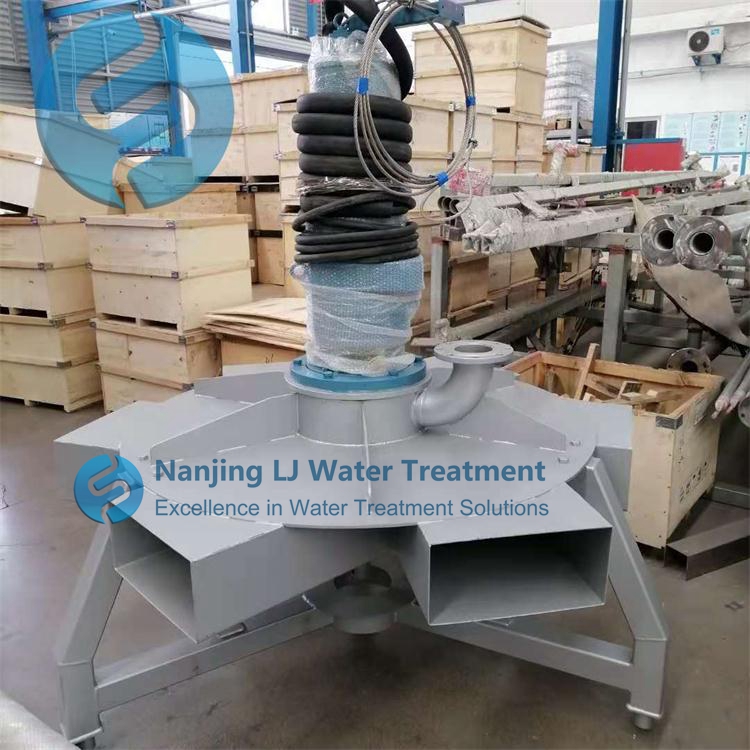

Most aeration mixer failures trace back to one place — the foundation pit. Not the mixer itself, not the control system, but the concrete pit where everything sits. If the pit is wrong, the mixer vibrates loose, the elevation drifts, and wastewater seeps in under the base. Fixing it later means draining the tank, cutting out the concrete, and starting over. That costs ten times more than getting the pit right the first time.
This article covers the real construction points that experienced crews follow when building foundation pits for aeration mixers in wastewater treatment plants.
Why Foundation Pit Design Gets Ignored
Engineers spend weeks sizing the mixer, calculating air flow, and modeling the tank hydraulics. Then they hand the pit design to a junior draftsman who copies a detail from a drawing library without thinking about the actual site conditions.
The result? A pit that looks fine on paper but cracks within six months because nobody checked the groundwater table. Or a pit that is 50 mm too shallow because the slab elevation was not verified before pouring. Or anchor bolts that pull out because the rebar cage was tied with wire instead of welded — and the wire unraveled under vibration.
The foundation pit is not a detail. It is the load-bearing interface between the mixer and the tank. Treat it that way or pay for it later.
Pit Geometry and Dimensions That Matter
Depth and Width Requirements
The pit depth must accommodate the full mixer assembly including the base plate, anchor bolts, and any adjustment shims. For most disc-type aeration mixers, the pit depth ranges from 400 mm to 600 mm below the tank floor slab. For jet mixers, go deeper — 500 mm to 750 mm — because the nozzle assembly extends further down.
The pit width should be at least 200 mm wider than the mixer base on each side. This gives you room to work with shims and grout without hitting the pit wall. A pit that is exactly the same size as the base is a nightmare to install — you cannot get a trowel in there to smooth the grout.
The pit bottom must be flat within ±3 mm across the full area. Use a screed board during the pour. Do not rely on the formwork to define the bottom surface — formwork shifts under concrete pressure and the bottom will be uneven.
Slope and Drainage Inside the Pit
The pit bottom should slope 1% to 2% toward a drain point at the lowest corner. This prevents water from pooling inside the pit after construction. Standing water inside the pit attacks the rebar and weakens the grout bond between the base plate and the concrete.
Install a 50 mm PVC drain pipe at the low point of the pit, capped during the pour and opened after curing. Connect it to the tank drainage system so any water that collects can escape without manual pumping.
Rebar Cage and Anchor Bolt Installation
Rebar Placement Rules
Every foundation pit needs a rebar cage. There is no exception. Even for small mixers under 30 kg, skip the rebar and the concrete will crack under vibration within a year.
Minimum rebar specification: 4 bars of 12 mm diameter HRB400 steel, tied into a square cage with 8 mm stirrups at 150 mm spacing. The cage must sit
