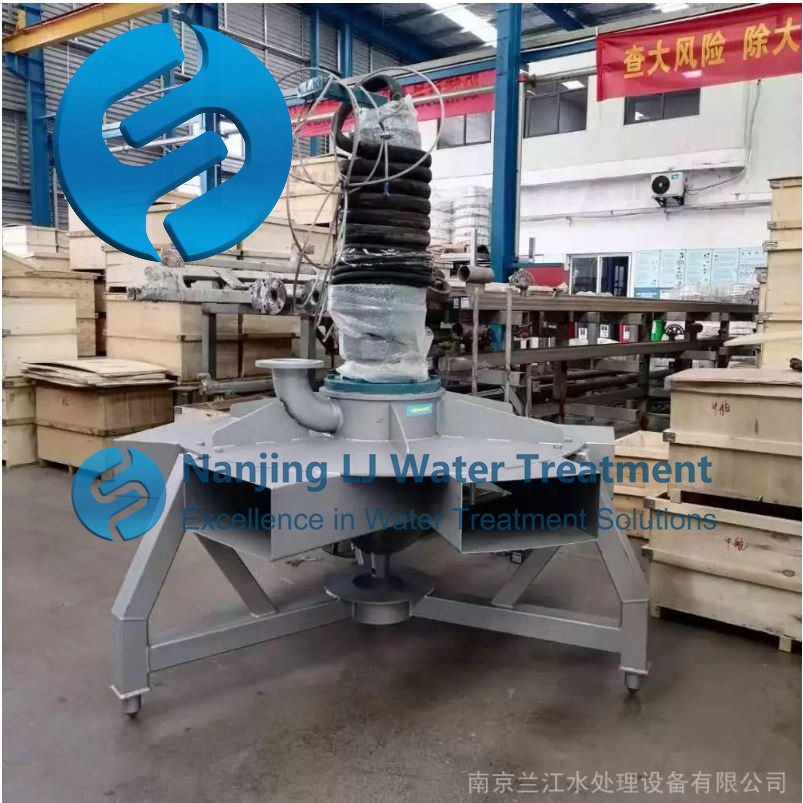

Misalignment during operation of an aeration mixer does not always appear as an obvious shift of the whole unit. It often starts as subtle changes in vibration patterns, uneven bubble distribution, or gradual wear on connection surfaces that operators may overlook during routine walkdowns. Left unaddressed, small positional deviations can escalate into repeated seal damage, bearing overheating, and unexpected downtime that interrupts the entire biological treatment process.

Base Anchor and Mounting Surface Inspection

Start your correction process by confirming the physical stability of the fixed foundation that supports the entire mixer assembly. Even a small shift in anchor bolt tension or a thin layer of accumulated debris under the mounting plate can introduce a steady positional offset that grows larger as the unit cycles through temperature changes and continuous operational vibration.

Walk around the full perimeter of the mounting base and check every anchor point for signs of looseness, such as fresh rust trails, shifted shim packs, or visible gaps between the base plate and the underlying support structure. Mark any bolt that shows movement, then shut down all connected power and release residual tension from each fastener before making any adjustments.

Use a precision level placed across multiple reference points on the top surface of the mounting plate to check for consistent horizontal alignment. If readings vary significantly across different axes, add or remove thin shim material gradually at the low points until the entire plate sits within the acceptable flatness range. This step ensures the unit’s foundational reference plane does not introduce hidden stress into the shaft and coupling assembly above.

Shaft and Coupling Parallelism Alignment

Once the base is secured and leveled, move your focus to the rotating shaft and the coupling that transfers torque from the drive unit to the submerged mixing element. Operation-induced misalignment here often creates uneven force distribution that accelerates wear on bearing races and generates radial runout that propagates down the full length of the shaft.

Mount a dial indicator firmly on one side of the coupling assembly, then set the probe tip to make steady contact with the outer circumference and the face of the opposite coupling half. Rotate both shafts slowly and together through a full 360-degree circle, recording the indicator reading at every 90-degree interval. These measurements will show you exactly how much parallel offset and angular gap exists between the two connected shaft ends.

Make small incremental adjustments to the position of the drive unit on its mounting feet, rechecking indicator readings after each adjustment. Stop and re-measure both planes once the total indicated runout falls within the acceptable tolerance window for that shaft size and operating speed. Avoid over-tightening coupling bolts before confirming final alignment, because uneven bolt torque can pull the shafts back out of alignment even after you have taken careful measurement readings.

Submerged Mixing Element Position Verification

Even when the upper drive and shaft are perfectly aligned, a bent impeller, shifted mounting bracket, or uneven buildup of heavy sediment on the mixing blades can pull the entire rotating assembly off its intended rotational centerline. This kind of submerged misalignment often creates asymmetric hydraulic loading that pushes the shaft sideways every time it passes through one full rotation.

Lower a set of reference measurement tools along the guide rails or fixed support structure of the basin to check the radial clearance between the mixing element and its surrounding stationary housing at multiple angular positions. If clearance values are consistently smaller on one side and larger on the opposite side, the element itself is sitting off-center inside its intended operating envelope.

Carefully inspect each blade surface for uneven buildup of fouling material that adds asymmetric mass to one side of the rotating assembly. Remove accumulated deposits evenly across all blade surfaces, and check for any visible deformation that might have occurred during a previous hard contact with a submerged object. Once the element is cleaned and inspected, reset its radial position using the built-in adjustment points on the lower support bracket, then confirm that clearance values stay consistent across the full 360-degree rotation before refilling the basin and restarting the unit.
