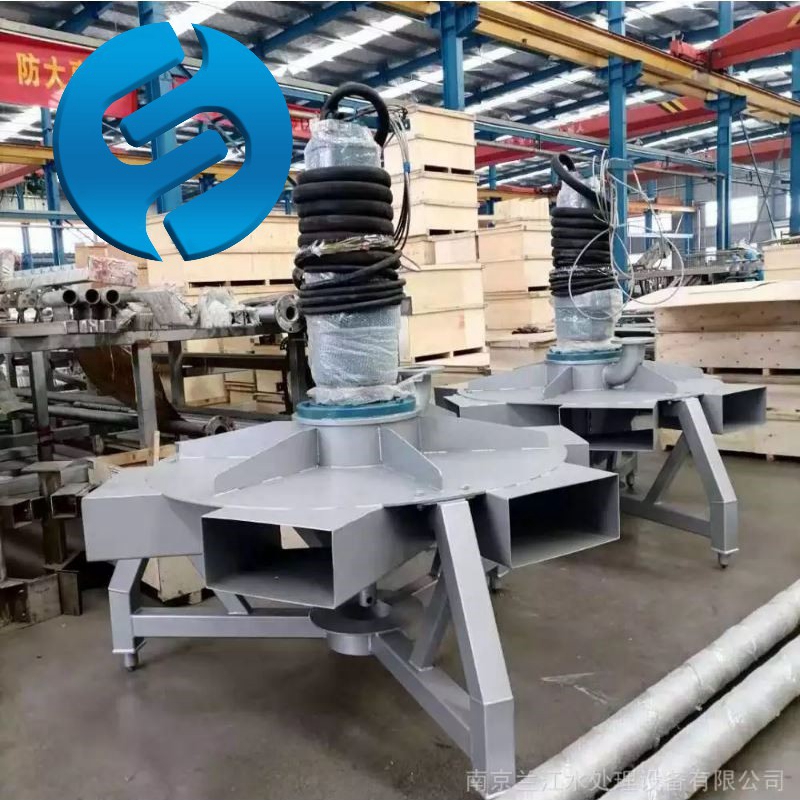

Low aeration pressure in a mixing unit can quickly disrupt process stability, reduce dissolved oxygen distribution, and create uneven flow patterns across the treatment basin. Many operators rush to replace large components or disassemble the entire system before ruling out simpler, more common root causes that often sit close to the air intake and upstream supply path.

Intake and Pre-Compression Blockage Checks

Start your troubleshooting sequence at the very point where fresh air enters the system, because restricted airflow at this stage creates a hidden bottleneck that no downstream adjustment can fully compensate for. A fully obstructed intake filter starves the compressor of the volume of air it needs to build consistent operating pressure, even when the motor runs at full rated speed. Over time, fine particulate matter, accumulated moisture residue, and airborne debris from the surrounding environment gradually coat the filter surface, raising intake resistance and lowering the actual mass flow the unit can draw in.

Inspect the condition of the filter element first before loosening any compressor housing bolts. Remove the element and hold it up against a bright light source to see if light can pass through the media evenly. If large sections appear opaque and heavily caked, the airflow path is severely restricted. After cleaning or replacing the element, restart the unit and observe whether the pressure reading climbs back toward the normal operating range.

Check the inlet tubing immediately downstream of the filter for collapsed sections, kinks, or loose connection points that could create additional flow restriction. Even a small indentation in a flexible hose can reduce effective internal diameter enough to drop inlet airflow significantly under continuous load.

Air Leak and Seal Integrity Verification

When the compressor runs at full speed but the pressure gauge still reads far below expected values, unsealed joints and degraded seals are among the most likely culprits. Leaks do not always produce loud hissing sounds that are easy to spot; many small leaks only become noticeable under full operating pressure, when compressed air escapes through tiny gaps at connection flanges, threaded joints, or cracked hose walls.

Walk the entire length of the air delivery path from compressor outlet all the way to the manifold that feeds the aeration assembly. Apply a small amount of liquid solution along every joint, seam, and connection point, and watch carefully for the formation of steadily growing bubbles. Mark each leak point you identify, then shut down the system and release all residual pressure before performing any tightening or seal replacement work.

Pay extra attention to joints that have been disassembled during previous maintenance cycles. Gaskets and sealing materials can shift, harden, or develop micro-cracks after repeated thermal cycling and vibration exposure. Even a gasket that looks intact on visual inspection may no longer provide the full surface contact required to hold rated system pressure.

Internal Aeration Manifold and Diffuser Blockage Assessment

After confirming that the upstream air supply and delivery lines are free of leaks and restrictions, shift your focus downstream to the submerged aeration manifold and the diffuser elements themselves. Sediment buildup, biological residue, and mineral scale can gradually block the tiny orifices on diffuser surfaces, creating backpressure that prevents the system from reaching its designed operating pressure. When enough diffuser openings become clogged, the overall system resistance rises sharply, and the compressor cannot push sufficient air volume through to generate the expected pressure reading.

Begin by observing the bubble distribution pattern across the entire basin surface. If large sections show weak, sparse bubbling while isolated points still produce strong, uniform flow, partial blockage across the manifold is almost certainly contributing to the low pressure condition. You can isolate individual manifold branches one at a time by closing intermediate valves and monitoring how system pressure responds when each segment is taken offline.

For diffuser elements that show clear signs of surface fouling, perform a controlled flushing sequence that pushes elevated airflow through the manifold to dislodge loosely adhered deposits. Follow this with a gentle cleaning process that dissolves mineral scale and organic residue without damaging the precision openings on each diffuser face. Once cleaning is complete, reopen all valves and allow the system to run through a full stabilization cycle before recording new pressure readings.
