How to Adjust the Tilt Angle of an Aeration Mixer for Optimal Performance

Most people install an aeration mixer, bolt it down, and never think about the angle again. That is a mistake. The tilt angle of the mixer directly controls where the water goes, how much solids stay suspended, and whether the basin flows the way it was designed to. A mixer that is even five degrees off can create dead zones where sludge settles and short-circuiting where influent slips through without proper treatment. Getting the angle right is not about guesswork. It is about measurement, adjustment, and verification.

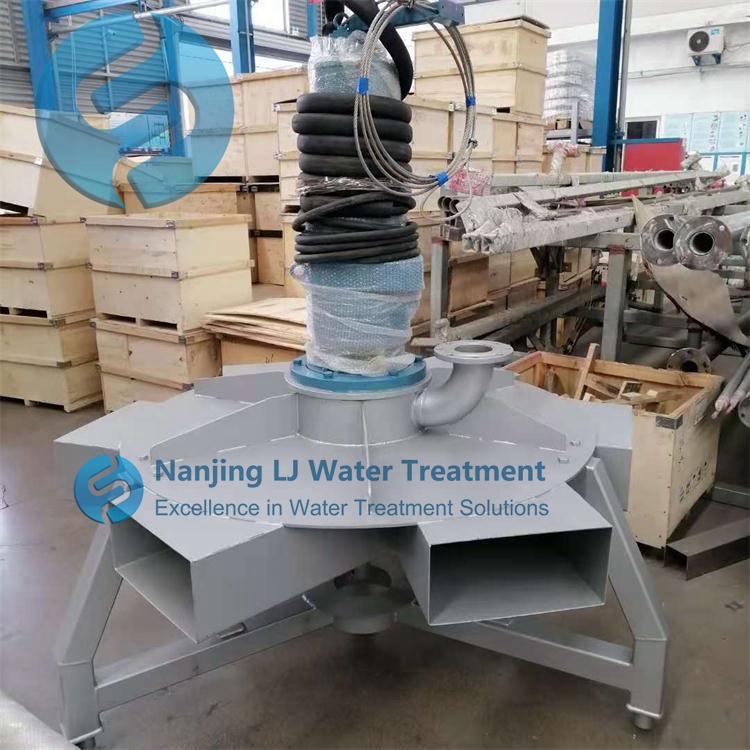

Method for adjusting the inclination angle of the aeration mixer

Why Tilt Angle Matters More Than You Think

The tilt angle determines the direction of the thrust vector. When a mixer pushes water straight down, you get vertical circulation. When it pushes at an angle, you get horizontal flow that sweeps the basin floor. Most aeration basins need a combination of both, and that combination changes depending on the basin geometry, the depth, and the type of sludge being treated.

A mixer mounted perfectly vertical will keep solids suspended directly below it but will not generate enough horizontal flow to push settled material toward the collection zone. A mixer tilted too far will throw water against the far wall, create turbulence at the surface, and waste energy on flow patterns that do not help treatment.

The sweet spot is usually between 10 and 25 degrees from vertical, depending on the application. Shallow basins need a steeper angle to reach the bottom. Deep basins need a shallower angle to avoid surface vortexing. Getting it wrong does not just reduce efficiency. It can cause uneven wear on the impeller and overload the motor.

Methods for Adjusting Mixer Tilt Angle

Using Adjustable Mounting Brackets

The most common way to change the tilt angle is through an adjustable mounting bracket. These brackets have a pivot point at the top and a series of bolt holes along the vertical plate. By moving the lower bolt to a different hole, you change the angle of the entire mixer assembly.

Start by loosening all mounting bolts but do not remove them. The mixer needs to stay connected to the cable and the support structure while you adjust. Use a digital inclinometer or a smartphone angle-measuring app placed directly on the mixer housing to get a real-time reading. Do not estimate the angle by eye. A difference of three degrees is enough to change the flow pattern noticeably.

Once you have the desired angle, hand-tighten the bolts in a star pattern. Then go back with a torque wrench and tighten each bolt to the specified value. Uneven torque will let the angle shift back under vibration within days.

If the bracket does not have enough adjustment range for your needs, you can add shim plates between the bracket and the mounting flange. A shim of 5 millimeters on one side will tilt the mixer by roughly 2 to 3 degrees, depending on the bracket geometry. Stack shims on the low side to increase the angle or on the high side to reduce it.

Modifying the Riser Pipe Connection

Some mixers are mounted on a riser pipe that extends from the basin floor to the water surface. The tilt angle in these cases is controlled by the angle of the riser itself. If the riser was installed vertical and you need to tilt the mixer, you have two options.

The first is to cut the riser and weld in a bent section. This is permanent and should only be done when you are certain the angle will never need to change again. Cut the riser cleanly, grind the bevel, and weld the bend using a qualified welder. Test the angle before painting or coating.

The second option is to use a swivel joint at the top of the riser. A swivel joint lets you rotate the mixer housing around the riser axis without cutting or welding anything. This is the preferred method for basins where the optimal angle might change with the seasons or as the sludge characteristics shift over time.

Shimming the Flange for Fine Adjustments

When the bracket is already at its limit but you still need a few more degrees, shim the flange. Place stainless steel shims of varying thickness between the mixer flange and the mounting surface. Add them to the side that needs to be raised.

This method works best for small corrections of 1 to 5 degrees. For larger adjustments, go back to the bracket method. Shimming too much creates uneven pressure on the gasket, which leads to leaks around the flange. Never use more than 10 millimeters of total shim stack on one side.

Verifying the Angle After Adjustment

Measuring Under Real Operating Conditions

Do not trust the angle measurement taken while the mixer is off. When the mixer runs, the thrust force can bend the bracket or shift the mounting bolts slightly, especially on older installations with worn hardware.

Measure the angle again while the mixer is running at full speed. Use the inclinometer on the housing, not on the bracket. The housing angle is what matters for flow direction. If the running angle is more than 2 degrees different from the static angle, your mounting hardware is not rigid enough. Upgrade the bolts, add a gusset plate, or switch to a heavier bracket.

Checking the Flow Pattern

The ultimate test is not the angle number. It is what the water actually does. After adjusting the angle, drop a float or a small tracer dye into the basin and watch where it goes. The flow should sweep the basin floor in a consistent pattern without creating large dead zones near the walls or the surface.

If the tracer shows that water is hitting one wall and bouncing back instead of circulating through the whole basin, the angle is too steep. Reduce it by 3 to 5 degrees and check again. If the tracer sinks straight down and does not move horizontally, the angle is too shallow. Increase it until you see the horizontal component you need.

Common Mistakes That Ruin the Adjustment

Over-Tightening and Under-Tightening
