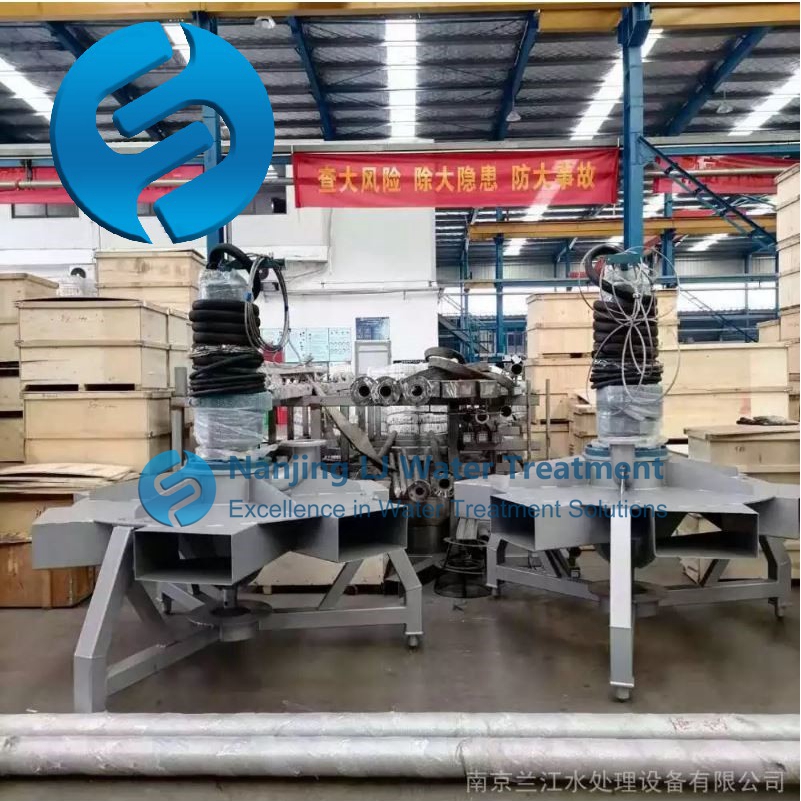

Aeration Mixer Installation Spacing: A Practical Guide to Smart Layout Planning
Getting the spacing right for aeration mixers is not a detail you can afford to overlook. Too wide, and oxygen transfer efficiency drops — your microorganisms starve. Too tight, and you waste energy, money, and headache. The sweet spot lives in a narrow band, and finding it demands real engineering logic, not guesswork.
This guide breaks down how to plan aeration mixer spacing the way experienced engineers actually do it — with numbers, tolerances, and field-proven rules.
Why Spacing Matters More Than You Think
Oxygen transfer efficiency hinges on bubble distribution across the entire tank floor. When mixers are spaced too far apart, dead zones form. Aerobic bacteria in those zones either slow down or die off, which directly tanks your effluent quality. On the flip side, cramming too many units together creates turbulent overlap — wasted air, higher blower loads, and no real gain in dissolved oxygen.
The national standard for micro-pore aeration devices sets the baseline spacing at 500 mm (50 cm) center-to-center. That number is not arbitrary. It balances oxygen utilization rate against energy cost for most municipal wastewater applications. But 500 mm is a starting point, not a universal law.
Standard Spacing Rules by Aerator Type
Disc-Type Micro-Pore Aerators
For the most common disc aerators, spacing follows the disc diameter directly:
Φ215 mm discs → layout at 500 mm × 500 mm grid
Φ260 mm discs → layout at 600 mm × 600 mm grid
Φ300 mm discs → spacing scales accordingly, typically 600–750 mm
Here is a critical field rule: offset adjacent rows by half the spacing distance. If your grid is 500 mm, shift every other row by 250 mm. This eliminates the "cross-seam" dead zones that form when four discs meet at a single point. It is a small adjustment that makes a massive difference in uniformity.
The aerator disc surface should sit 200 mm above the tank bottom (±5 mm tolerance). For lateral air distribution setups, the orifice center sits 120 mm above the air pipe bottom (±5 mm). The outermost ring of aerators must stay 200 mm from the tank wall (±20 mm) to prevent bubbles from crawling up the wall and short-circuiting.
Tubular Aeration Devices
Tubular mixers follow different logic. Longitudinal spacing along each branch pipe typically falls between 500 mm and 1200 mm, depending on water quality, concentration, and air supply volume. The air supply main pipes above the water surface should be spaced 2400–3000 mm apart laterally.
For liftable tubular aerators, the vertical distance from the tank bottom ranges 300–500 mm, with longitudinal spacing around
