Main Industry and Application
Hyperboloid mixers are widely used in environmental protection, chemical, energy, light industry
and other industries where solid, liquid and gas mixing is required. It is especially suitable for
coagulation tanks, regulating tanks, anaerobic tanks, nitrification and denitrification tanks in
sewage treatment processes. The unique installation method of the motor above the liquid level
of the QDJ hyperboloid mixer is particularly suitable for working in high-temperature,
high-concentration, and corrosive liquid environments
Working Condition
The density of the media shall not exceed 1150 kg/m³.
The installation depth should not exceed 10m.
Main Specifications and Dimensions
Model | Impeller | Speed(r/min) | Power(kW) | Service | Weight(kg) | ||
Standard | Range | Standard | Range | ||||
GDJ/QDJ | 500 | 76 | 40~110 | 1.1 | 0.75~1.5 | 1~3 | 300/320 |
1000 | 55 | 30~80 | 1.5 | 1.1~2.2 | 2~5 | 480/710 | |
1500 | 38 | 30~60 | 2.2 | 1.5~3 | 3~6 | 510/850 | |
2000 | 33 | 20~42 | 3 | 2.2~3 | 6~14 | 560/1050 | |
2500 | 27 | 20~42 | 5.5 | 3~5.5 | 10~18 | 640/1150 | |
2800 | 24 | 20~30 | 7.5 | 4~7.5 | 12~22 | 860/1180 | |

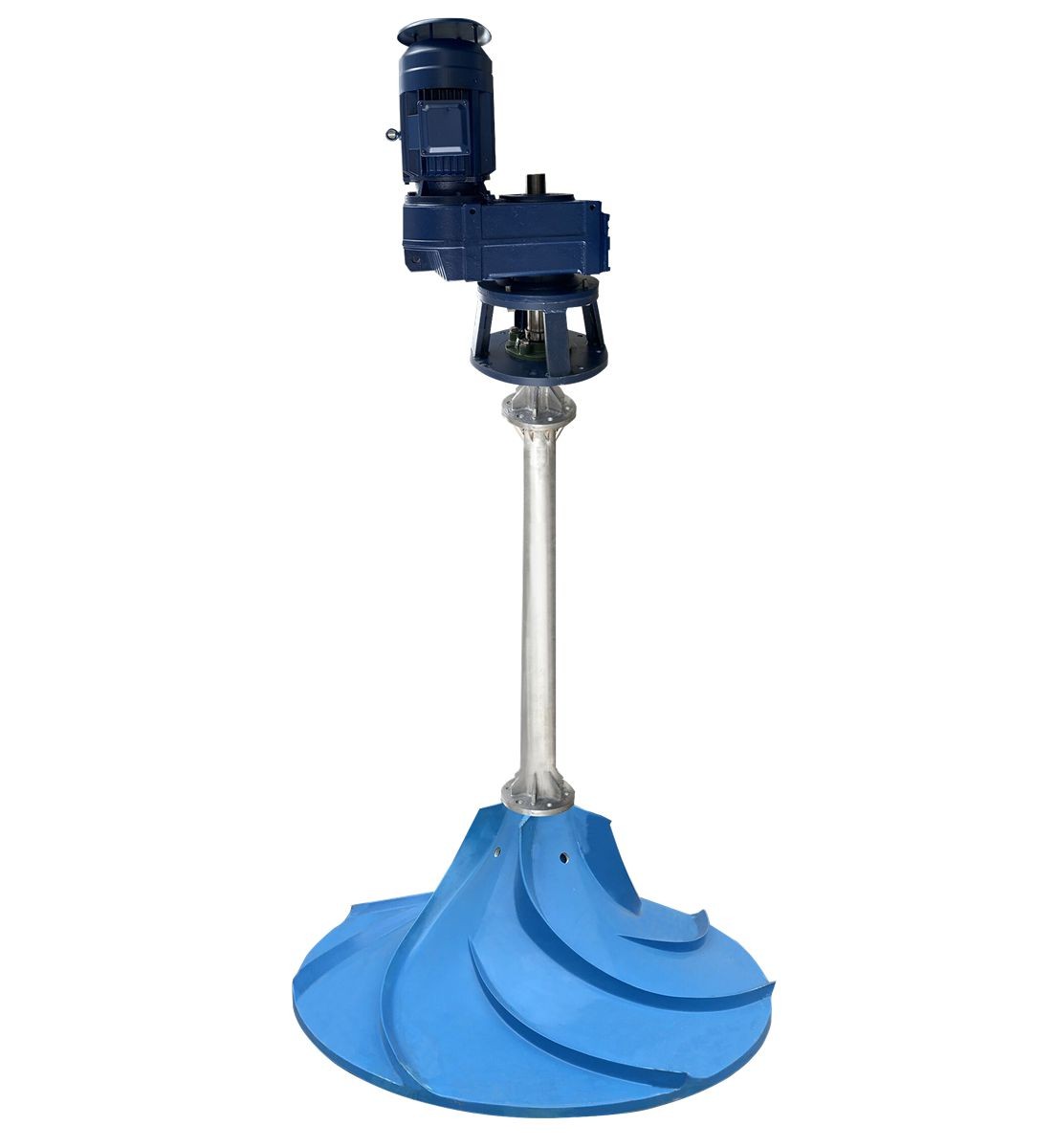

Key Features
Superior Flow Pattern: The hyperbolic impeller shape creates a 360° spiral flow, ensuring "no dead zone" mixing and preventing sludge sedimentation.
Corrosion-Resistant FRP: The impeller is crafted from high-quality fiberglass, offering excellent resistance to acids, alkalis, and abrasive materials.
Energy Efficient: The large surface area of the impeller allows for high flow rates at very low rotational speeds, significantly reducing power consumption.
Flexible Customization: * Gearbox/Motor: Choose your preferred brand (SEW, Nord, ABB, Siemens, etc.).
Shaft Length: Tailored to your tank depth.
Material: Options for stainless steel or carbon steel shafts.
Easy Maintenance: Designed for underwater operation with a simple structure that allows for easy lifting and inspection.
Successful Installations

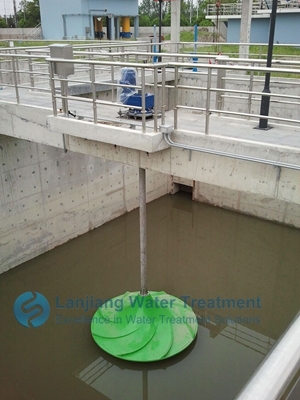

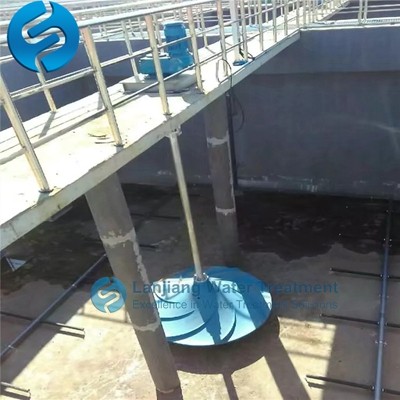

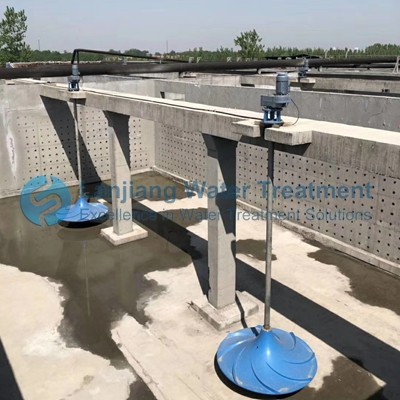

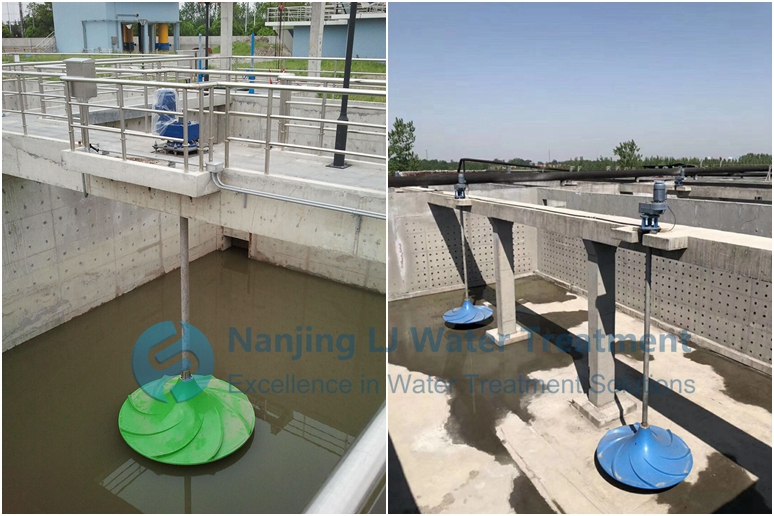

FRP Hyperboloid Mixers installed in a 50,000m³/day municipal wastewater plant.
